Hetu-Formal asks whether a temporal or structural property holds for every behavior the model allows, and returns either an attributable proof or a concrete counterexample. Built around a controlled proof spine of AIG construction, Tseitin CNF conversion, a native CDCL SAT solver and k-induction, it keeps proof semantics, counterexample generation and solver evidence consistent across property verification, equivalence, protocol, security and coverage applications.
Compiles a SystemVerilog Assertion subset into executable observer FSMs, proving invariants and solving cover goals with clean unsupported-property diagnostics.
Bounded model checking with concrete counterexample traces, k-induction with base and step evidence, and IC3/PDR unbounded safety with a certified inductive invariant.
Localization-based CEGAR built over the IC3 flow, plus liveness-to-safety lasso reasoning that returns a proof or a stem-and-loop starvation witness.
Sequential RTL-to-RTL validation, frozen-symbol datapath scoreboarding and datapath validation against integer and fixed-point reference expressions, including narrow multiply and saturation.
AXI, AHB, APB and generic ready/valid rule libraries bound to mapped design signals on the master or slave side, with environment assumptions constraining legal behavior.
Cover-property reachability with witnesses and formal unreachable analysis applied to real SoC unreachable-code points, feeding coverage closure evidence.
Information-flow verification using two-copy models to test non-interference between secret sources and observable outputs.
Vacuity, over-constraint, weak cone-of-influence and mutation-escape analysis so the proof environment itself is checked, not trusted.
A fenced Z3 SMT flow for supported integer and non-NaN IEEE-754 problems, returning UNKNOWN rather than a fabricated proof, with structured evidence JSON on every run.
| Stage | Verification, formal property verification and equivalence checking |
|---|---|
| Proof engines | Bounded model checking, k-induction, IC3/PDR, localization CEGAR, liveness-to-safety, native CDCL SAT with optional CaDiCaL agreement, fenced Z3 SMT |
| Applications | Property/assertion proof, model checking, LEC equivalence, connectivity and protocol, coverage and formal unreachability, security non-interference, low-power sequencing, functional-safety fault classification |
| Property input |
SystemVerilog Assertion subset (|->, |=>,
##n,
disable iff,
$past,
$rose,
$fell,
$stable, selected
s_eventually), protocol rule
libraries, environment assumptions
|
| Design inputs | RTL and mapped netlist within the supported Verilog subset, VCD-seeded simulation-to-formal initialization with conditional-verdict labelling |
| Outputs | Structured evidence JSON with engine, solver, depth, verdict and witness/proof metadata; concrete counterexample traces; certified invariants; formal UNR results for coverage closure |
| PDK / technology | Not required, operates on RTL and netlist (technology independent) |
| Flow | CLI-first native stage in the WIOWIZ verification flow, deterministic and evidence-sealed for regression and CI |

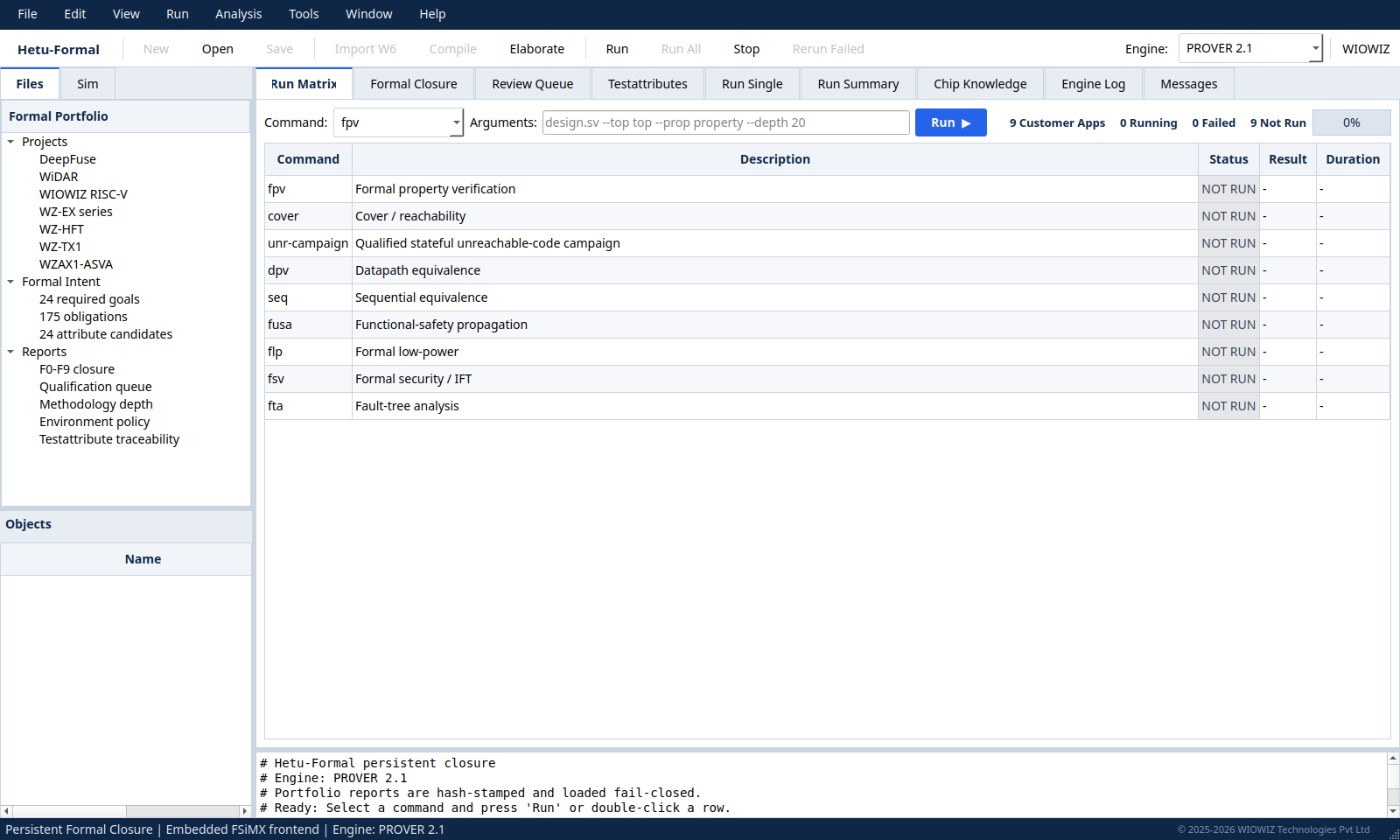

Hetu Formal 0.26.0 for Linux x86_64 includes the command-line engine and native Studio GUI. The GUI provides RTL import, command and argument controls, Run, Stop, result views, engine log and transcript.
SHA-25657063d5cd976e8c84bd2080125223bed0c937c1d7c0673bc3f67028fa829203e
The submitted details are stored in the website download record so WIOWIZ can identify the issued package and provide product support. Authorized inquiries and engineering staff can review the record. Submitting the form starts this download and does not create a response deadline.
Verify after download: sha256sum hetu-formal-0.26.0-linux-x86_64.tar.gz
